FreightLok
1839
Standard shoring beam
Shoring Beams
Most efficient means for load securing

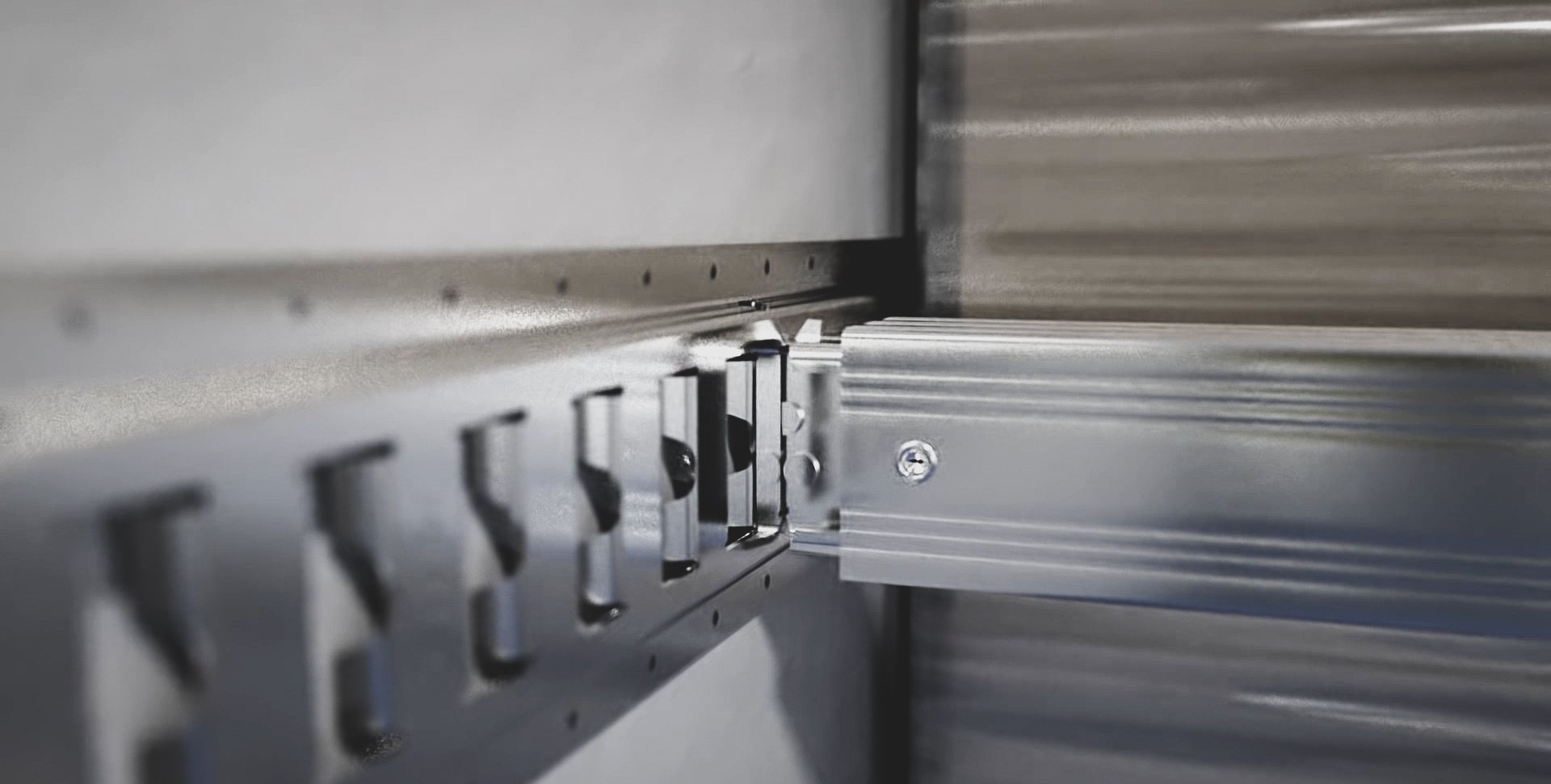

The most efficient means for load securing in Closed Box (with Combi Track) or Curtainsider trailers (with 5110 Steel Side Plank). Simply ‘click and position’ the 1839 Beam in the side tracks.
High Performance
Highest performing shoring beams available
Customisations
We're able to customize to your requirements: select your working range and finishing
European Manufacturer
We design and manufacture in Europe
Our offering

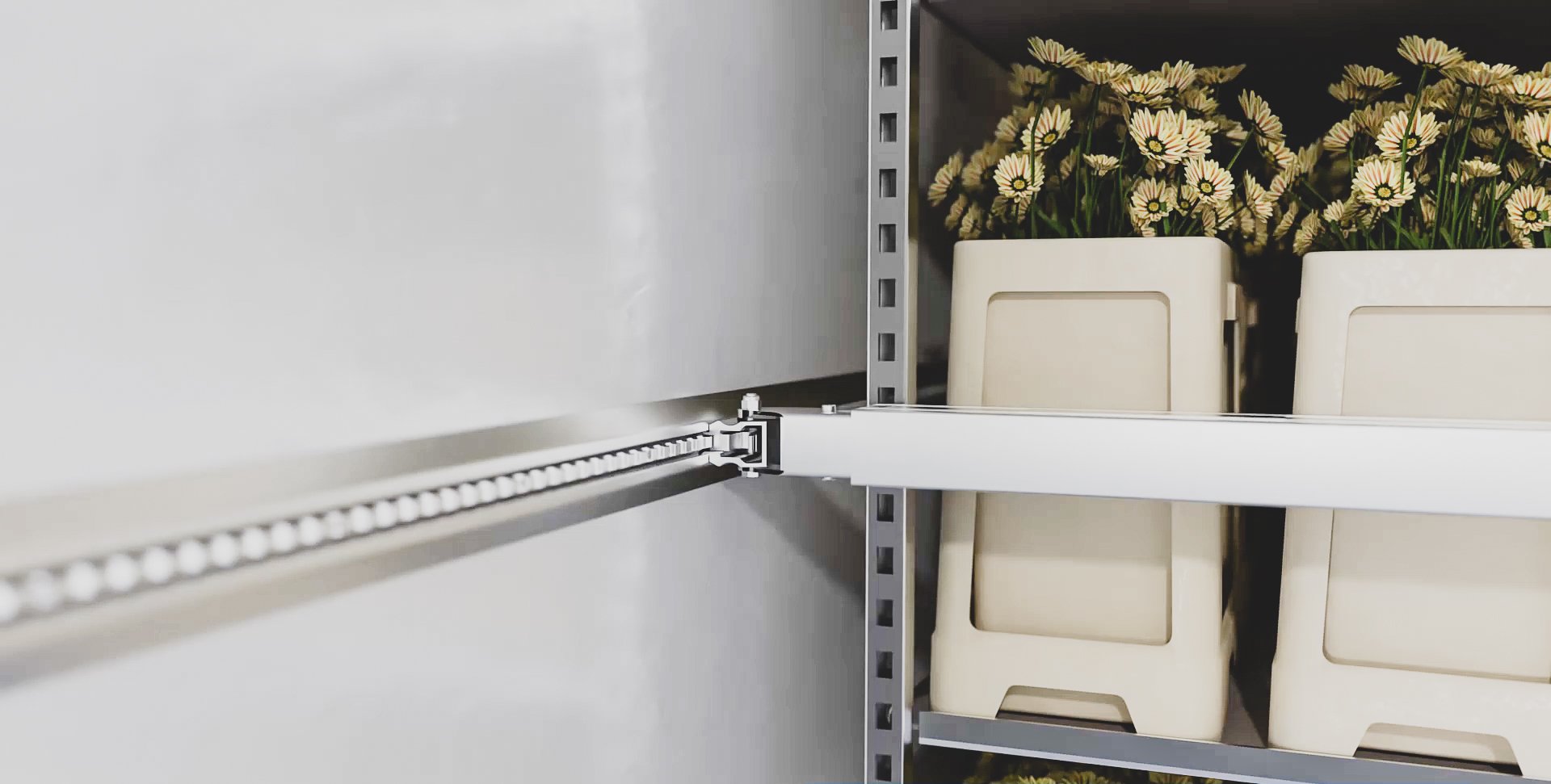

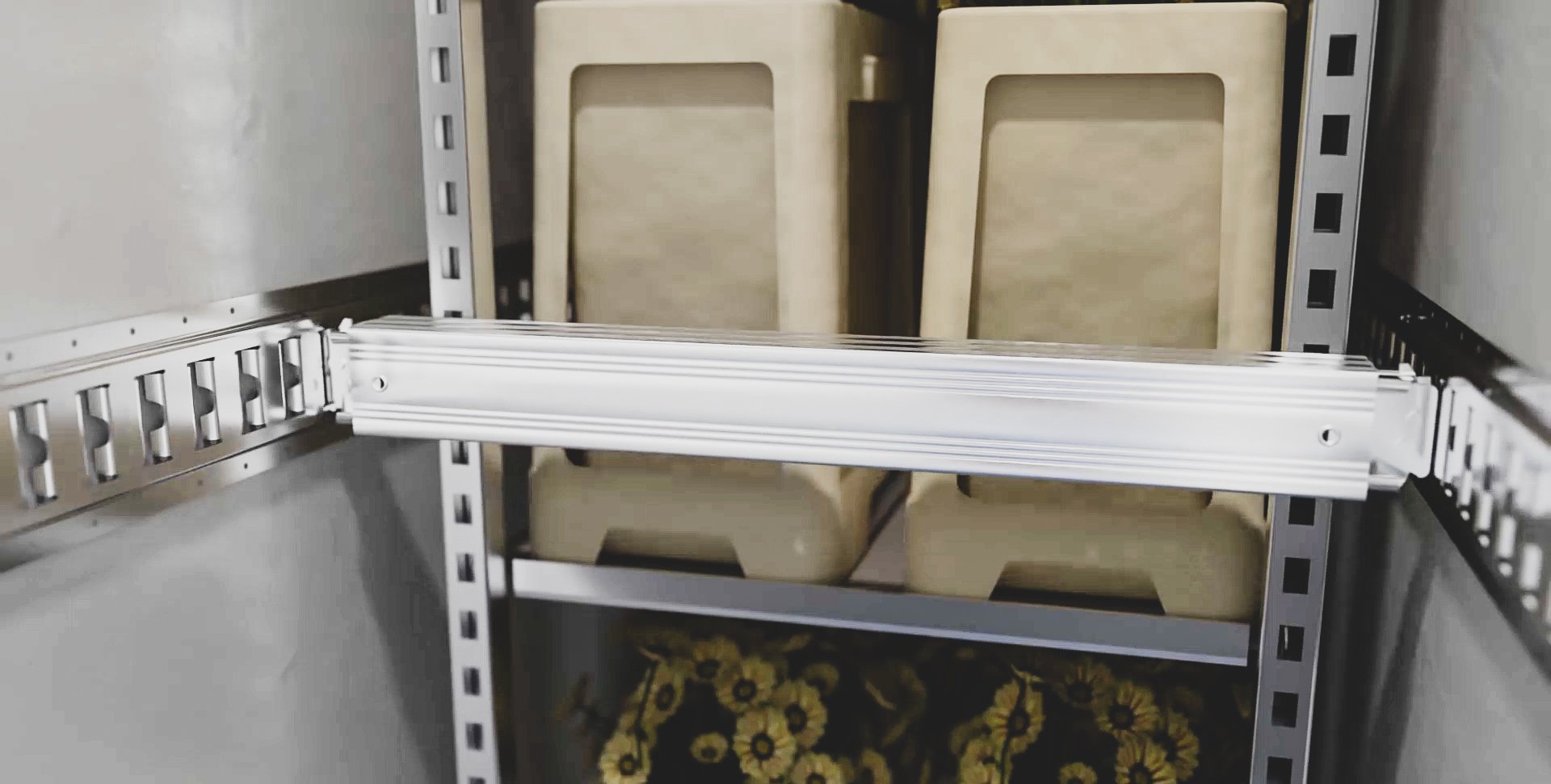

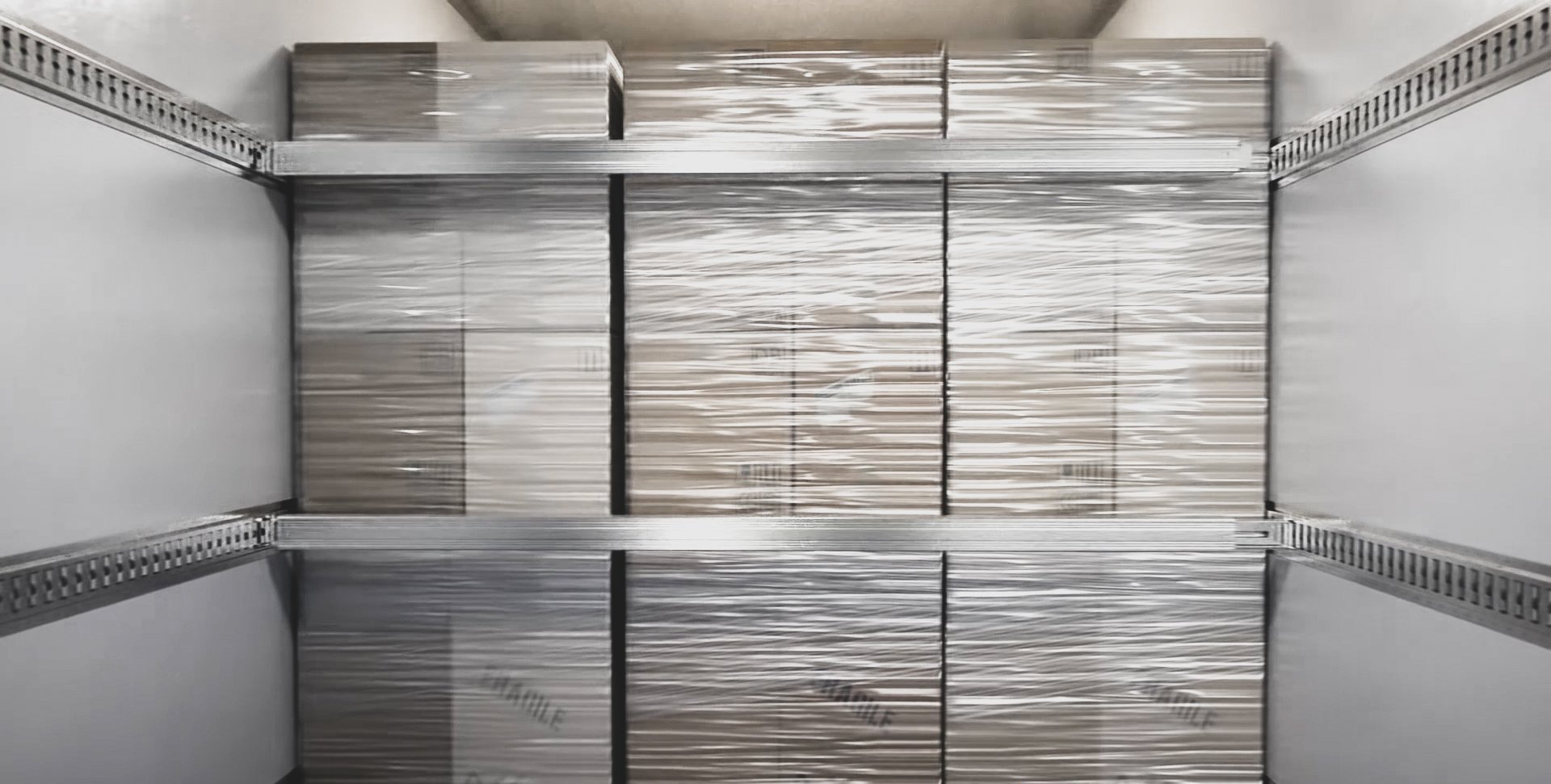

Simply ‘click and position’ the 1839 Beam in the side tracks. Commonly used for shoring, it can also be used to form a strong, demountable second deck or pallet station (even with mixed loading heights). Only when the load has been distributed evenly over the full length of the beam. Looking for a dedicated double decking solution? Have a look at our LayerLok product range (LINK) for closed box, vans and steel bodies/shipping containers. As a manufacturer, we supply the widest range of beams for both shoring as double decking. Contact us for a tailored variation.
FreightLok
1839HDSEC
Shoring beam with extra high performance

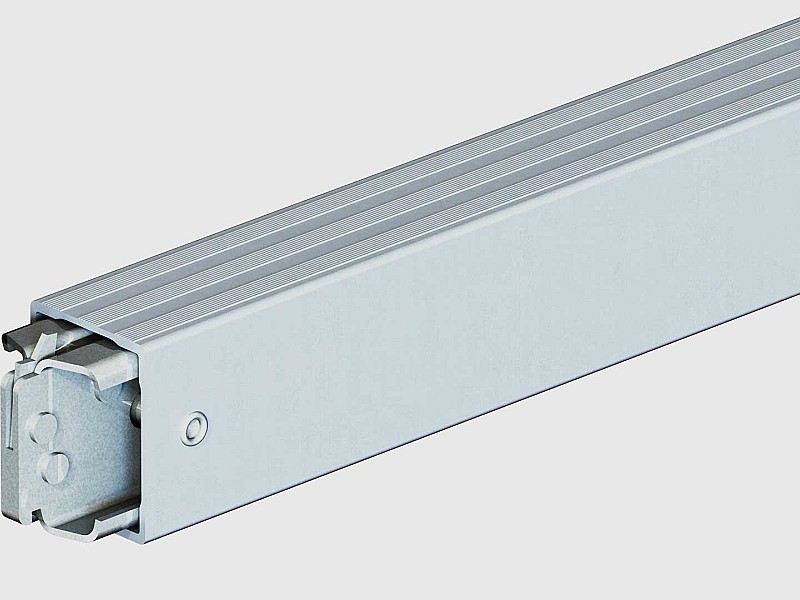

FreightLok 1839 Beam
The FreightLok 1839 beam is manufactured from high tensile aluminum, equipped with a strong steel extending trigger mechanism. The sliding heads allow for use in many different vehicle widths. These beams are available as standard or Heavy Duty (HD) in different working lengths and load capacities.
FreightLok 1839 Beam
| Article no. | Product | Material | Finishing | Working Range (mm) | Load Capacity Decking (daN) | Load Capacity Shoring (daN) |
|---|---|---|---|---|---|---|
| 10014602 | 1839 (3009) | Aluminum | Non-Annodized | 2400 -2700 | 1000 | 900 |
| Custom | 1839 | Aluminum | Non-Anodised Anodised | Customizable | 1000 | 900 |
| 10008758 | 1839HD | Aluminum | Annodized | 2400 -2700 | 1350 | 1125 |
| Custom | 1839HD | Aluminum | Non-Anodised Anodised | Customizable | 1350 | 1125 |
< Scroll left to right >
Minimum order quantities apply, please ask our sales department

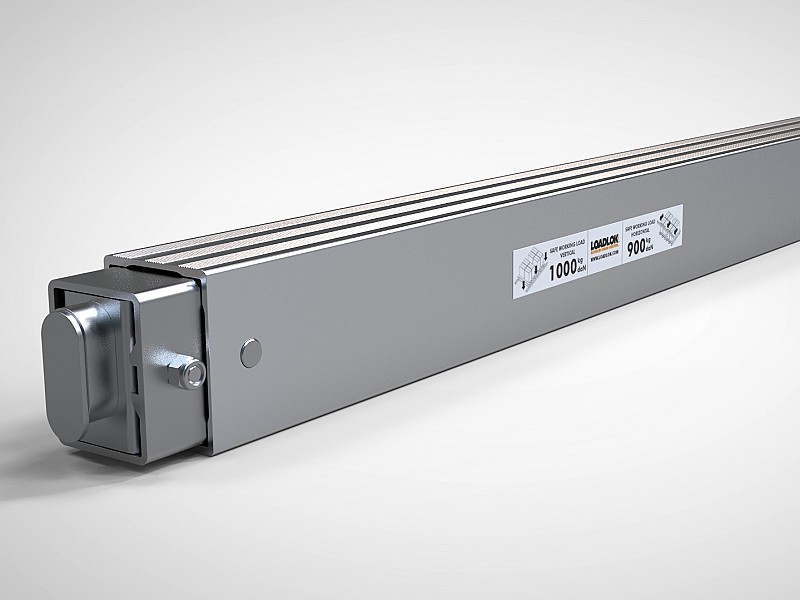

FreightLok 1839 GTS Beam
| Article no. | Product | Material | Finishing | Working Range (mm) | Load Capacity Decking (daN) | Load Capacity Shoring (daN) |
|---|---|---|---|---|---|---|
| 10014922 | 1839 (GTS) | Aluminum | Non-Annodized | 2410 -2670 | 1000 | 900 |
| Custom | 1839 (GTS) | Aluminum | Non-Anodised Anodised | Customizable | 1000 | 900 |
< Scroll left to right >
Minimum order quantities apply, please ask our sales department
-thumbnail-big.jpeg)

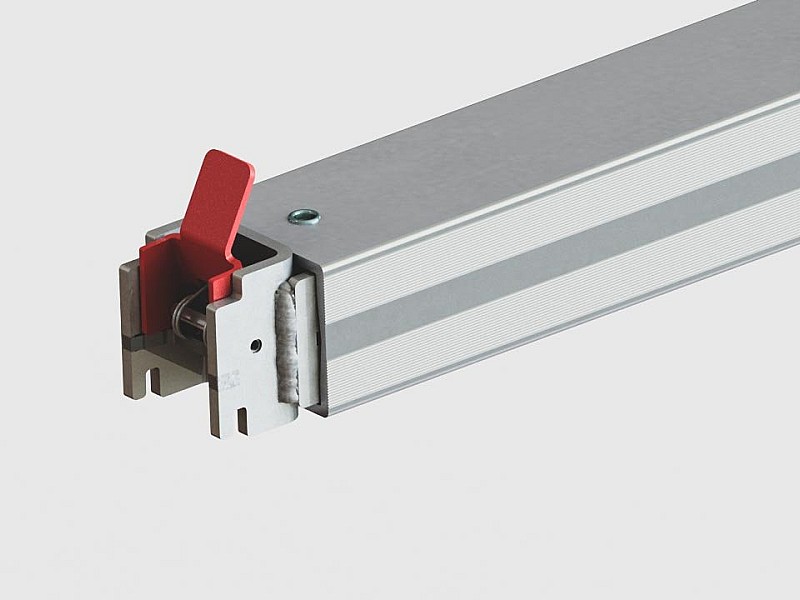

FreightLok 1839HDSEC Beam
The superior 1839HDSEC can be used for securing heavy cargo in horizontal direction only. Not for decking! Commonly used in beverage transport. Find out in our Knowledge Base how this solution has been the solution for St van den Brink in beverage transport.
FreightLok 1839HDSEC Beam
| Article no. | Product | Material | Finishing | Working Range (mm) | Load Capacity Decking (daN) | Load Capacity Shoring (daN) |
|---|---|---|---|---|---|---|
| 10011334 | 1839HDSEC Red (3009) | Aluminum | Annodized | 2400 -2700 | 0 | 2000 |
| 10011342 | 1839HDSEC Blue (3008) | Aluminum | Annodized | 2400 -2700 | 0 | 2000 |
| Custom | 1839HDSEC | Aluminum | Non-Anodised Anodised | Customizable | 0 | 2000 |
< Scroll left to right >
Minimum order quantities apply, please ask our sales department
Contact our team of specialists
Get in touch with our load securing specialists today. Ask for a quote, product information or a product tailored to your specifications.
