Garment Rails
Rail solutions for Garment on Hanger
LoadLok garment rails can be supplied compatible for all track and panel systems in use and are suitable for all types of hanging clothing.

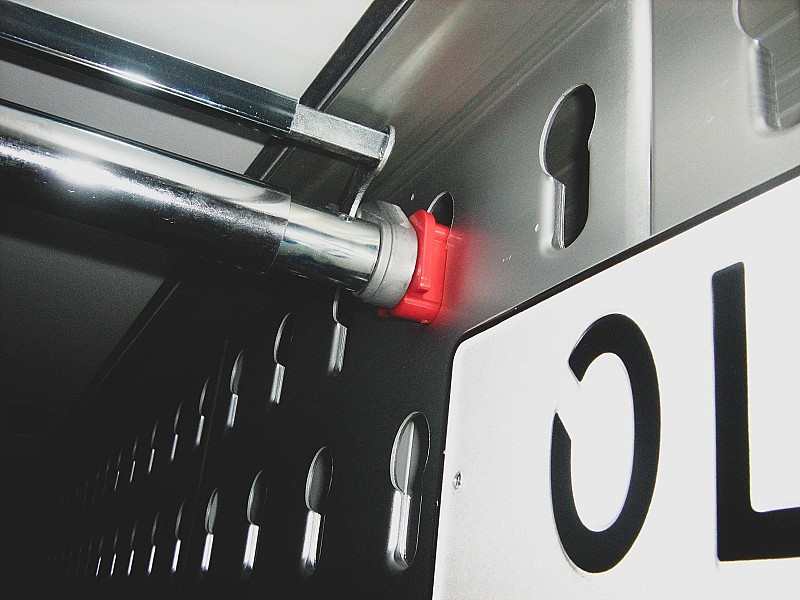

LoadLok garment rails can be supplied compatible for all track and panel systems in use and are suitable for all types of hanging clothing. The main hanger rail of the LoadLok garment rail is produced with a special high quality chromium finish. Alternative surface treatments are available on request, including zinc plating. Length of garment rail depends on distance between panels or tracks.
Maximize payload
Load capacity of 300 daN
High efficiency
Lowest cost per km
Flexibility
Ultimate flexibility in garment transport
Garment Transport
The Fashion and Laundry industry have huge benefits for transporting garment on hanger (GOH). GOH transport has several benefits over traditional methods, including improved efficiency, reduced handling, and better protection for the clothing items.

Chrome finishing
The high tensile steel tubes have a chrome finishing, this ensures that small metal particles cannot adhere to clothing. Alternative surface treatments are available on request, including zinc plating.
Garment Combi Rail for Panel
Loadlok’ Combi’ garment rail is compatible with Standard, High Density(HD) GTS and Keyhole panels. The Combi rail offers the operator greater flexibility with an automatic adjustment range of 90 mm.
Garment Rails
SAP nr | Category | Type | Product | Material | Finishing | Working Range (mm) | Outer Tube Size (mm) | Plug Diameter (mm) | Load Capacity (daN) |
---|---|---|---|---|---|---|---|---|---|
N/A | Adjustable | Round | 1811 | Steel | Zinc Plated | 1680 - 2130 | 42 | 19/24 Multiplug | 350 |
N/A | Adjustable | Round | 1811 | Steel | Zinc Plated | 2080 - 2530 | 42 | 19/24 Multiplug | 350 |
N/A | Adjustable | Round | 1811 | Steel | Zinc Plated | 2480 - 2930 | 42 | 19/24 Multiplug | 350 |
N/A | Adjustable | Round | 1811 | Steel | Zinc Plated | 1680 - 2130 | 36 | 19/24 Multiplug | 350 |
N/A | Adjustable | Round | 1811 | Steel | Zinc Plated | 2080 - 2530 | 36 | 19/24 Multiplug | 350 |
N/A | Adjustable | Round | 1811 | Steel | Zinc Plated | 2480 - 2930 | 36 | 19/24 Multiplug | 350 |
Custom | Adjustable | Round | 1811 | Steel Aluminium Stainless Steel | Zinc Plated Non-Anodised Anodised | Customizable | 36 42 | 19 24 19/24 Multiplug | 350 |
Scroll left to right

Garment Rail for Tracks
Loadlok garment rails can be supplied compatible for all track and panel systems in use and are suitable for all types of hanging garment. The main hanger rail of the Loadlok garment rail is produced with a special high quality chrome finish. Alternative surface treatments are available on request, including electro zinc plating. Length of garment rail depends on distance between panels or tracks.

Garment Rails for Tracks
SAP nr | Category | Type | Product | Material | Finishing | Working Range (mm) | Outer Tube Size (mm) | Plug Diameter (mm) | Load Capacity (daN) |
---|---|---|---|---|---|---|---|---|---|
N/A | Adjustable | Round | 1811 | Steel | Zinc Plated | 1680 - 2130 | 42 | 19/24 Multiplug | 350 |
N/A | Adjustable | Round | 1811 | Steel | Zinc Plated | 2080 - 2530 | 42 | 19/24 Multiplug | 350 |
N/A | Adjustable | Round | 1811 | Steel | Zinc Plated | 2480 - 2930 | 42 | 19/24 Multiplug | 350 |
N/A | Adjustable | Round | 1811 | Steel | Zinc Plated | 1680 - 2130 | 36 | 19/24 Multiplug | 350 |
N/A | Adjustable | Round | 1811 | Steel | Zinc Plated | 2080 - 2530 | 36 | 19/24 Multiplug | 350 |
N/A | Adjustable | Round | 1811 | Steel | Zinc Plated | 2480 - 2930 | 36 | 19/24 Multiplug | 350 |
Custom | Adjustable | Round | 1811 | Steel Aluminium Stainless Steel | Zinc Plated Non-Anodised Anodised | Customizable | 36 42 | 19 24 19/24 Multiplug | 350 |
Scroll left to right
3D Animation video
Check all details of our LayerLok SC solution in our 3D animation video.
View on YouTube
Contact
Get in touch with our cargo control specialists today. Ask for a quote, product information or a product tailored to your specifications.
