Garment Panels

Panel solutions for Garment on Hanger

LoadLok garment panels are available in many variations and are designed to meet the individual requirements of the customer.

Garment Panels combined with Garment Rails are designed for optimal use of space. Each panel is custom made based on the specifications of the trailer. Each panel can be equipped with folded edges, for quick installation and direct mounting to the side wall. Available in different types of steel and finishing.

Maximize payload

Use every mm to the max

High efficiency

Lowest cost per km

Flexibility

Ultimate flexibility in cargo

Select your Garment Panel solutions

Select a solution that fits best to your vehicle and application

FashionLok

GTS Panels

FashionLok

Keyhole Panels

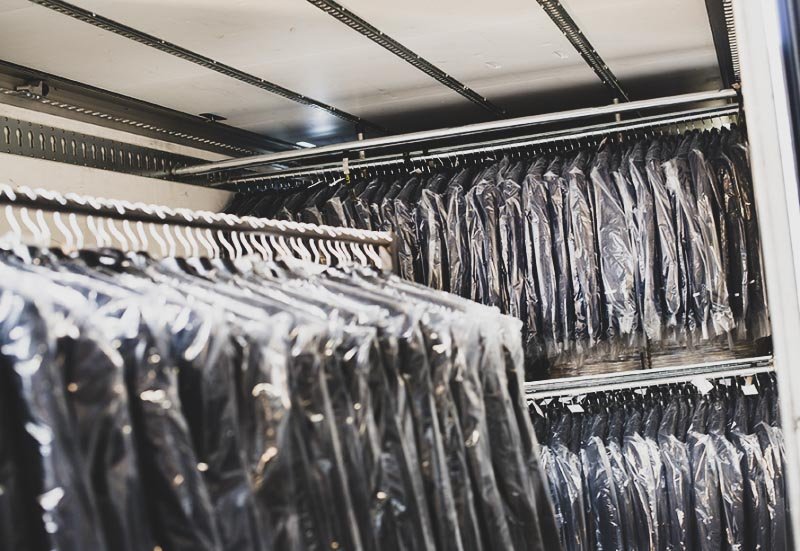

Garment on Hanger Transport

The Fashion and Laundry industry have huge benefits for transporting garment on hanger (GOH). GOH transport has several benefits over traditional methods, including improved efficiency, reduced handling, and better protection for the clothing items.

Panel and Rail solutions

Garment on hanger transport is a method of transporting clothing items on hangers, rather than being folded or packed into boxes. This method of transport is especially useful for high-value, delicate or bulky items such as suits, dresses, and coats. During transport, the clothing items remain on hangers, and are loaded onto specially designed trailers with hanging rails.

With our Garment Panel and Rail solutions the forwarder can maximize his payload and loading area. The Garment Rails are positioned anywhere required for optimal use of space, with a maximum load capacity of 300 daN. All rails have a chrome finishing, this ensures that small metal particles cannot adhere to clothing.

During transport, our clever locking system with a top rail and Velcro strip ensures that garment does not fall of.

FashionLok GTS Panels

LoadLok GTS Panels are available in many variations and are designed to meet the individual requirements of the customer. Standard GTS panels are 3mm thick anodised aluminium, 2mm thick mild steel. Pre-galvanized panels are also available.

All panels can be supplied with or without kick plate and fixing holes. In addition, our CNC facility allows complete design flexibility and enables us to produce standard rectangular and shaped panels up to 1,5 meter wide with varied hole pitch and design.

Our High Density (HD GTS) panel increases the available garment rail position by some 40% compared with the standard panel. GTS Panels should be installed allowing a minimum gap of 25mm between the rear of the panel and the trailer wall to ensure easy insertion and removal of the garment rail. In combination with a decking beam, the GTS panel can also be used for second decking.

GTS Panels

Matieral No.	Material	Finishing	Weight (kg)	Horizontal pitch (mm)	Vertical Pitch (mm)	Panel size (mm)	Folded Type	Hole Type
Custom	Steel	Pregalv	Size dependend	100	100	Customized	Customized	GTS
Custom	Aluminum	Non-anodised Anodised	Size dependend	100	100	Customized	Customized	GTS

_{Scroll left to right}

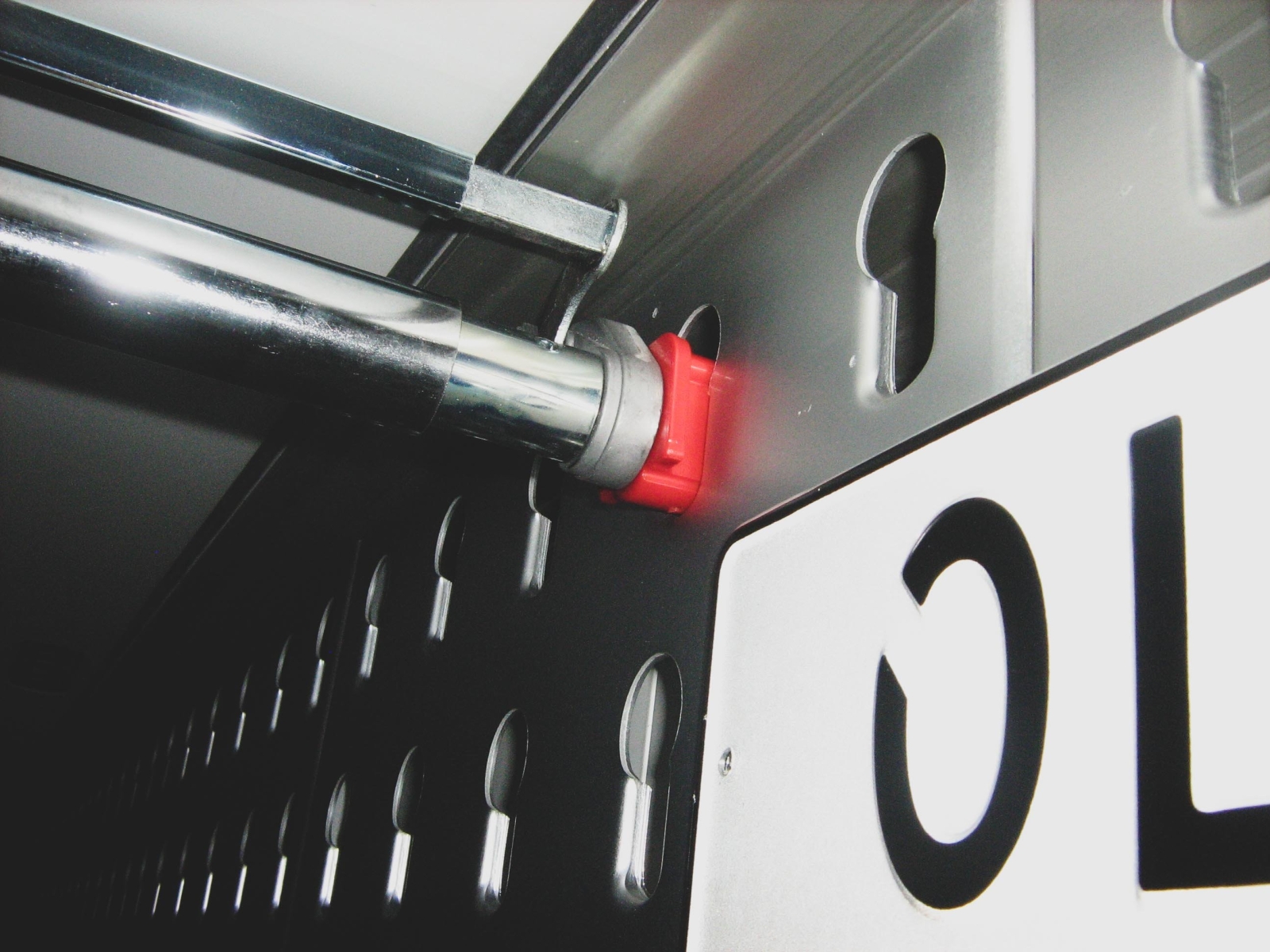

FashionLok Keyhole panels

LoadLok keyhole panels are available in many variations and are designed to meet the individual requirements of the customer. Standard Keyhole panels are 3mm thick anodised aluminium. 2mm thick mild steel pre-galvanised panels are also available.

In addition, our CNC facility allows complete design flexibility and enables us to produce standard rectangular and shaped panels up to 1,5 meter wide with varying hole pitch and design. Keyhole panels should be installed allowing a minimum gap of 21mm between the rear of the panel and the trailer wall to ensure easy insertion and removal of the garment rail.
