Telescopic Shoring Poles

Cargo control with track and shoring pole combination

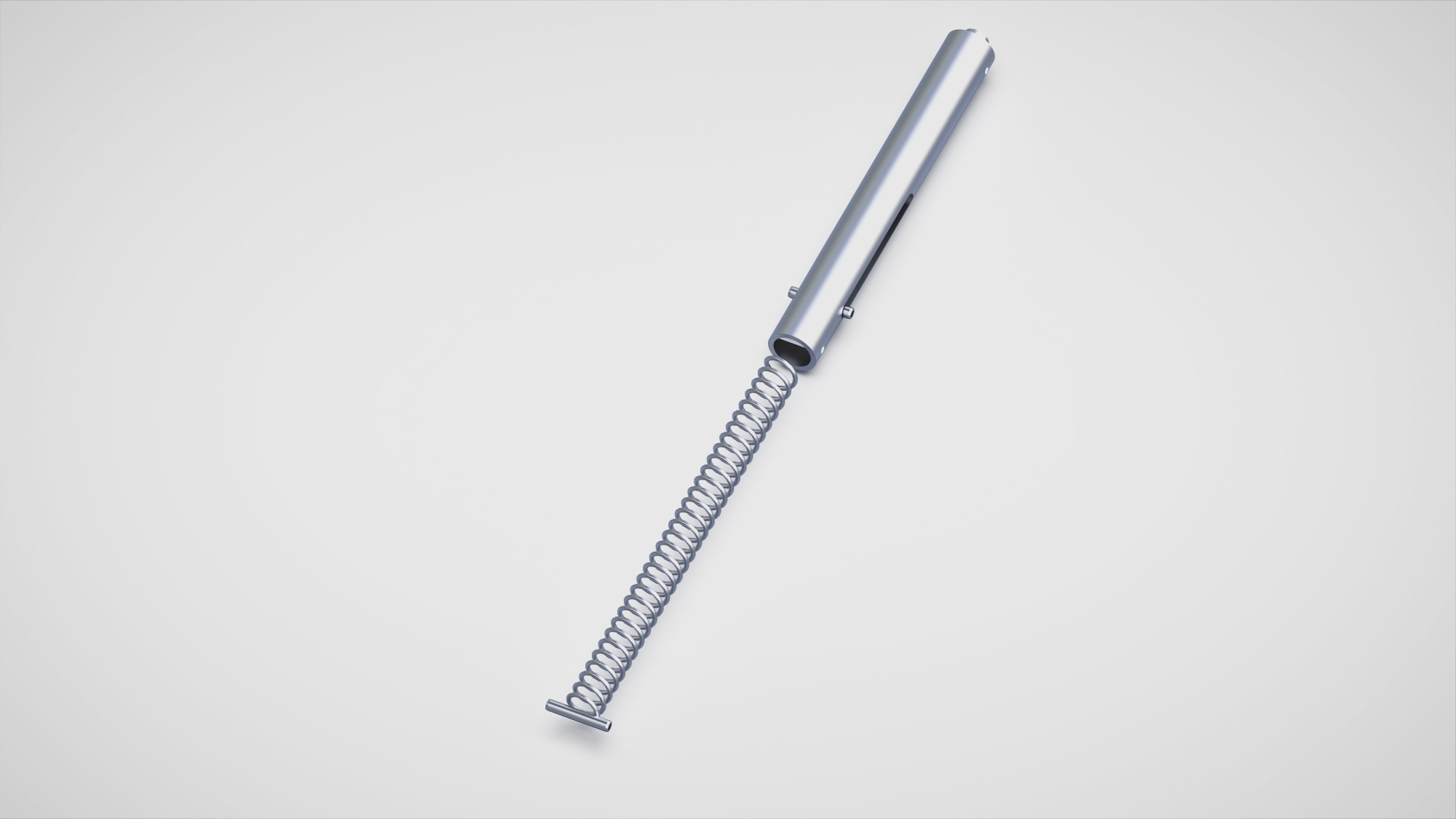

FreightLok telescopic shoring poles are a commonly used for load securing in trucks, trailers, and light commercial vehicles in a simple and safe manner. These shoring poles are rigid and available in (high yield) steel or aluminium. Each pole will have a spring end for easy installation in the vehicle.

38 Years of experience

We've been around in cargo control for a long time

Customisations

We're able to customize to your requirements: select your plug, working range, tube and material & finishing

European Manufacturer

We design and manufacture in Europe

Our offering

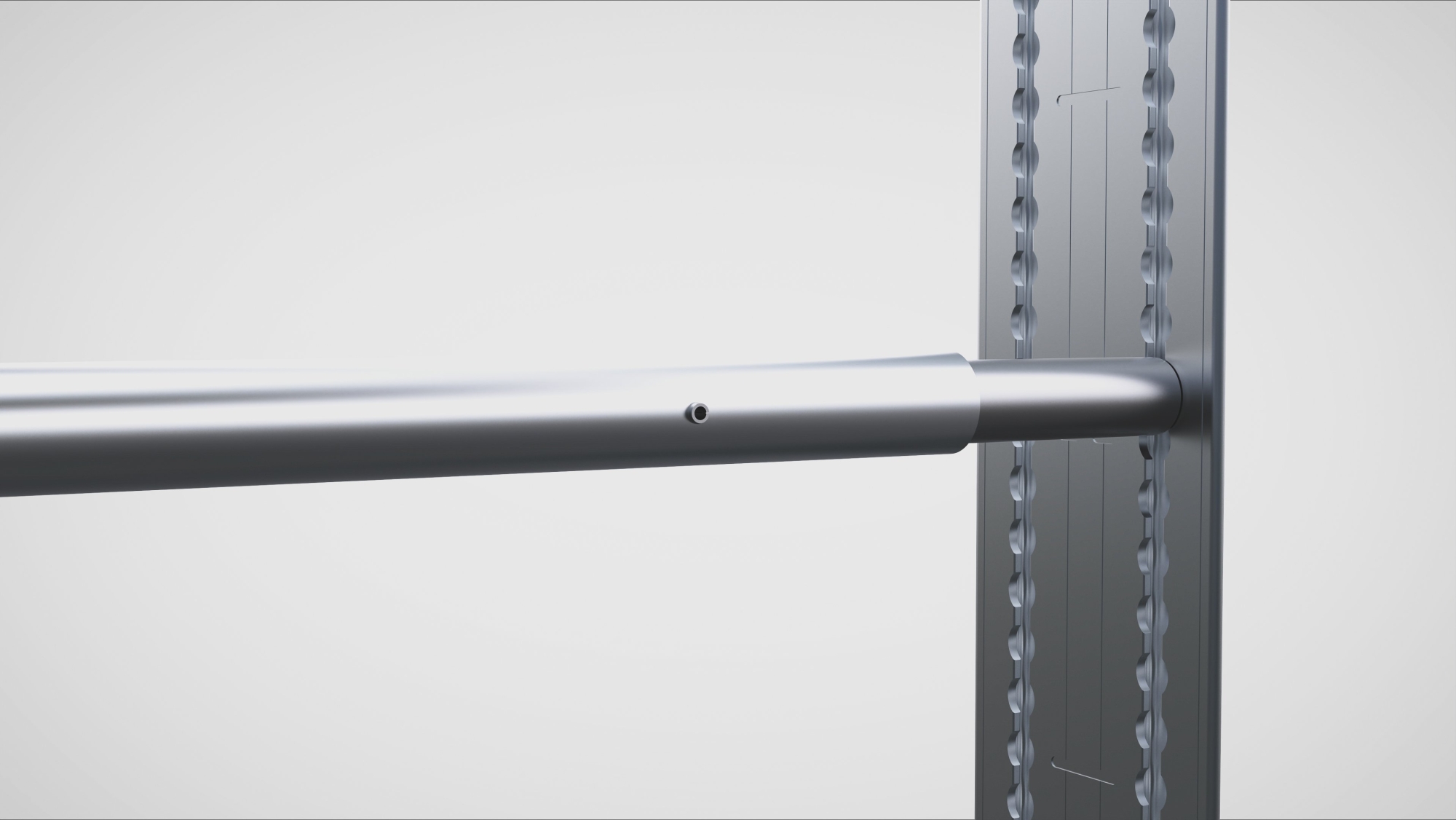

Both versions will be standard available with a 19/24mm Multiplug, which are compatible with 20mm Airline rails, 25mm Round Hole/Combi Tracks and 8mm Furniture Tracks. Available in different materials.

Adjustable Shoring Poles

round and square shaped

Adjustable on desired length with integrated locking pin.

Shortenable Shoring Poles

Round shaped

Cut to the desired length by the customer.

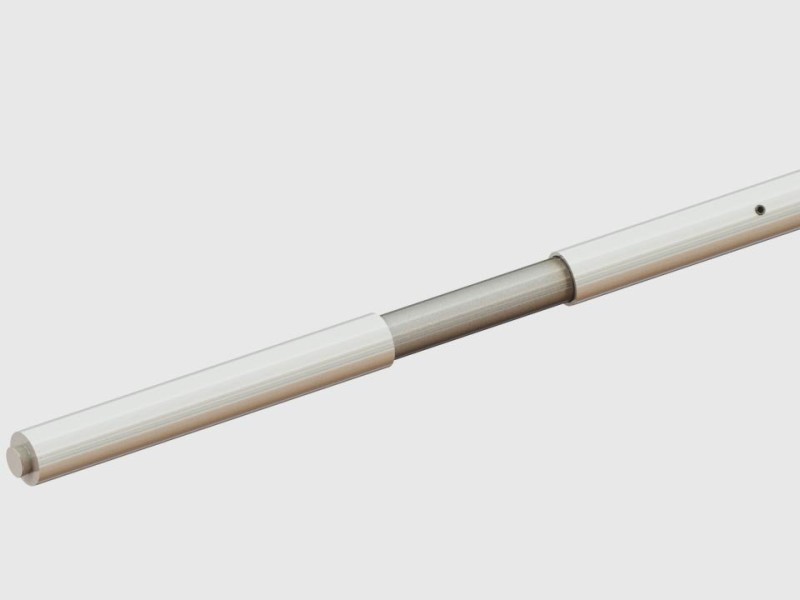

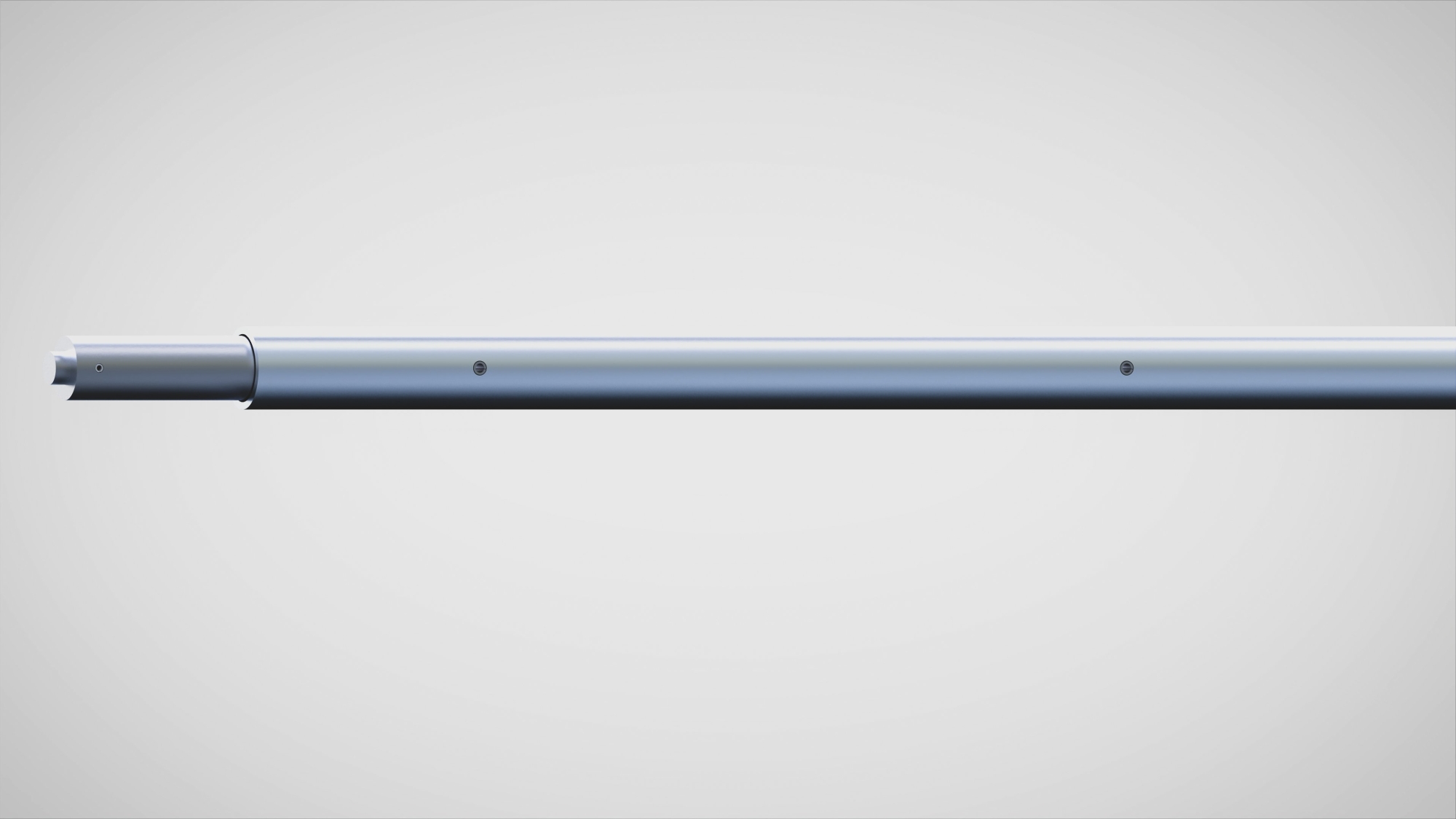

Adjustable Telescopic Shoring Poles

These poles can be adjusted to the desired length. The poles can be set to several positions due to the integrated locking pin. We offer these as aluminium or (high yield) steel (round and square).

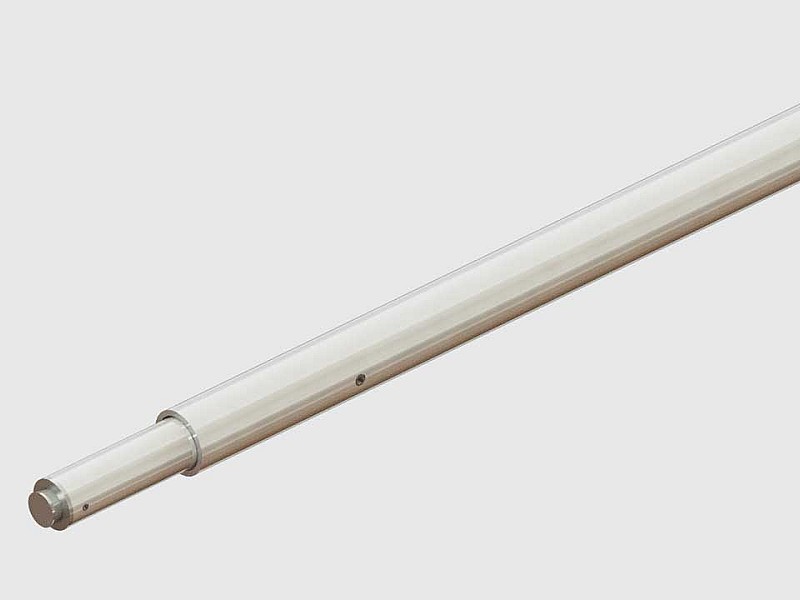

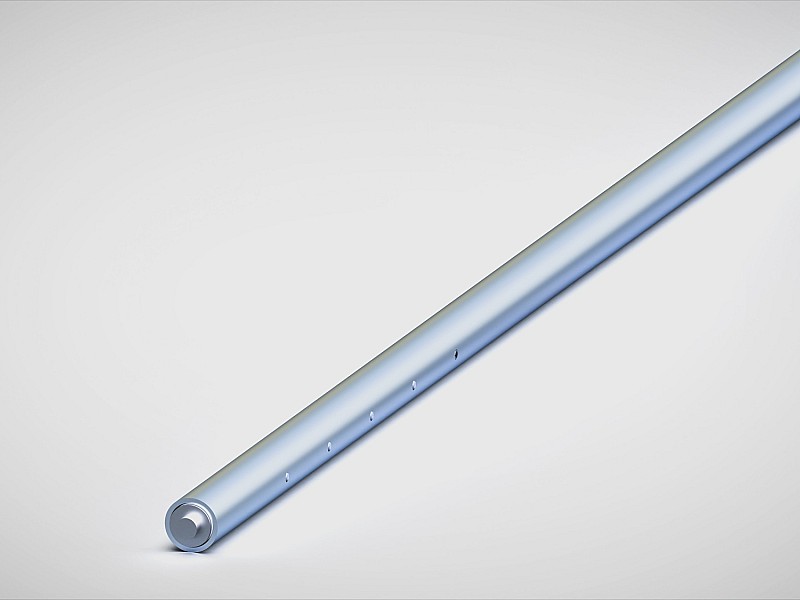

FreightLok 1811 – Steel / Round

Article no.CategoryTypeProductMaterialFinishingWorking Range
(mm)
Outer Tube Size (mm)Plug Diameter (mm)Load Capacity
(daN)
N/AAdjustableRound1811SteelZinc Plated1680 - 21304219/24 Multiplug350
N/AAdjustableRound1811SteelZinc Plated2080 - 25304219/24 Multiplug350
N/AAdjustableRound1811SteelZinc Plated2480 - 29304219/24 Multiplug350
N/AAdjustableRound1811SteelZinc Plated1680 - 21303619/24 Multiplug350
N/AAdjustableRound1811SteelZinc Plated2080 - 25303619/24 Multiplug350
N/AAdjustableRound1811SteelZinc Plated2480 - 29303619/24 Multiplug350
CustomAdjustableRound1811Steel
Aluminium
Stainless Steel
Zinc Plated
Non-Anodised
Anodised

Customizable36
42
19
24
19/24 Multiplug
350

Scroll left to right

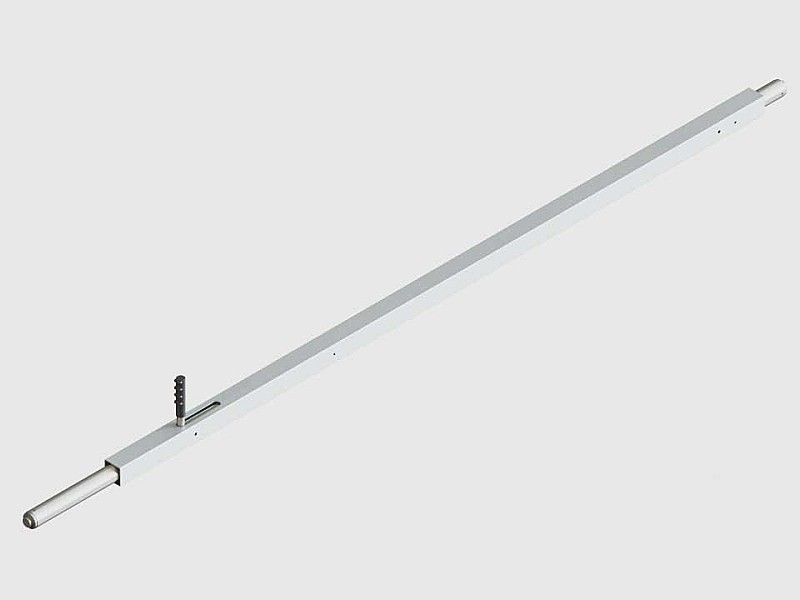

FreightLok 1812 – Steel / Square

Article no.CategoryTypeProductMaterialFinishingWorking Range
(mm)
Outer Tube Size (mm)Plug Diameter (mm)Load Capacity
(daN)
N/AAdjustableSquared1812SteelZinc Plated2280 - 27154019/24 Multiplug350
N/AAdjustableSquared1812HDSteelZinc Plated2280 - 27155019/24 Multiplug350
CustomAdjustableSquared1812HDSteel
Aluminium
Stainless Steel
Zinc Plated
Non-Anodised
Anodised

Customizable40
50
19
24
19/24 Multiplug
350

Scroll left to right

Shortenable Shoring Poles

These shoring poles are easily cut to the desired length by the customer. They are supplied with a loose plug at one end for reattaching to the shortened section using a clamping pin. Need help and information on shortening telescopic shoring poles? Get in touch with us.

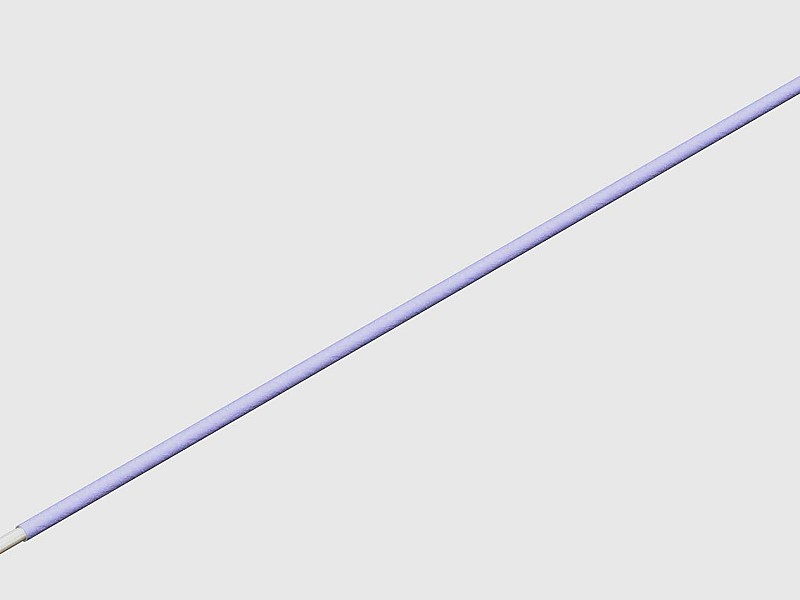

FreightLok 2818 – High Yield Steel / Round

Article no.CategoryTypeProductMaterialFinishingWorking Range
(mm)
Outer Tube Size (mm)Plug Diameter (mm)Load Capacity
(daN)
N/AShortenableTPE Round2818SteelZinc Plated / Red TPE30003619/24 Multiplug350
N/AShortenableTPE Round2818SteelZinc Plated / Blue TPE30003619/24 Multiplug350
CustomShortenableTPE Round2818Steel
Aluminium
Zinc Plated
Non-Anodised
Anodised
Red TPE
Blue TPE

30003619
24
19/24 Multiplug
350

Scroll left to right

FreightLok 1810 – Steel / Round

Specifically for roll containers, we have developed the 1810 telescopic shoring pole, with reinforced spring end.

Article no.CategoryTypeProductMaterialFinishingWorking Range
(mm)
Outer Tube Size (mm)Plug Diameter (mm)Load Capacity
(daN)
N/AShortenableRoller Container Round1810SteelZinc Plated30004219/24 Multiplug350
CustomShortenableRoller Container Round1810Steel
Aluminium
Stainless Steel
Zinc Plated
Non-Anodised
Anodised

Customizable4219
24
19/24 Multiplug
350

Scroll left to right
